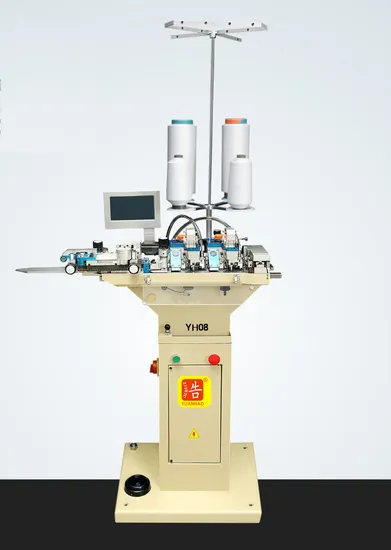

Sock Linking Machine

Basic Info

Product Description

Functional characteristics

1.Automatically lubricating nose device makes a longer performance life and a better working environment with low-noise.

2.Adopting automatically cutting device,the sutures will be cutting unified length.

3.Turnover yarn feeding device makes the yarn cleaning conveniently.Inner automatic hoisting device is for conveying purpose,assure the sock's flatness.

4.An optical fiber inductive time lapse function as yarn feeding makes it possible to set delay time according to the running speed,which reduces the waste of sutures substantially when sewing.

5.Adopting dual channel nose device,makes the sock sewed with fine flat seams.

6.Point-contact touch screen computer control system makes it easy to handle.

7.Single motor control for dual-channel heads. Density can be adjusted at any time through the computer.The lines can be closed together to match the hand-stitching.The pattern can also be separated from the tensile strength by hand.More able to adapt to different types of socks for sewing requirements.

8.The separate motor control of the conveyor drive chain more effectively controls the elongation or shortening of socks during sewing.More able to adapt to different types of socks for sewing requirements.

9.There is an automatic hoisting device between the first nose and the second one,act as anti-dropping apparatus when one-sided of socks suddenly fall off.This comes to a better flatness and sewing quality,close to handsewer's job.
